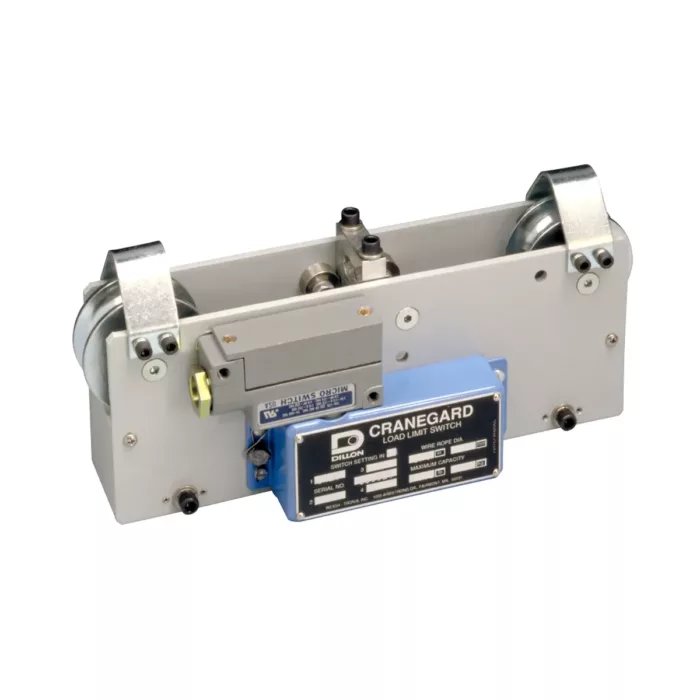

Dillon Cranegard Load Limit Switches

The Dillon Cranegard clamps on cables for wire rope hoists, elevator and crane overload prevention and slackline detection. It can be used directly on a slack hoist or crane wire rope quickly, without interrupting service or severing the rope, and can be set to trigger at predetermined load limits.

SPECIFICATIONS

Available Capacities
CGS-1: 2,500 lb | 1,250 kg
CGS-2: 5,000 lb | 2,500 kg
CGS-3: 10,000 lb | 5,000 kg
CGS-4: 20,000 lb | 10,000 kg

Method of installation
ClampOn

Safety Factor
2:1 Ultimate Safety Factor
(Metric capacities 1.8:1)

Cable diameters
3/8” – 1¼”

Features
Up to 4 switches for slack and overload
Switches can be wired to trigger anything from a warning alarm to complete system shutdown
Slack setpoint as low as 100 lb (50 kg) dependent on capacity
Setpoints can be adjusted in the field

Advantages of the Dillon Cranegard

Easy installation

The Cranegard installs in minutes, using only a screwdriver and an Allen wrench, and can be installed without interrupting work.

Customizable switches

The Cranegard can be furnished with up to four switches, which are set to trigger at predetermined loads you specify at time of order. Switches can be wired to activate anything from a warning alarm to a complete system shutdown.

Safe and reliable

The Cranegard is rugged, durable, and will last for years in harsh conditions. It also promotes the highest standards of worksite safety, both for your equipment and personnel, and achieves an ultimate safety factor of 2:1.
