CROSBY STRAIGHTPOINT LOADLINK PLUS DYNAMOMETER

Category:

Related products

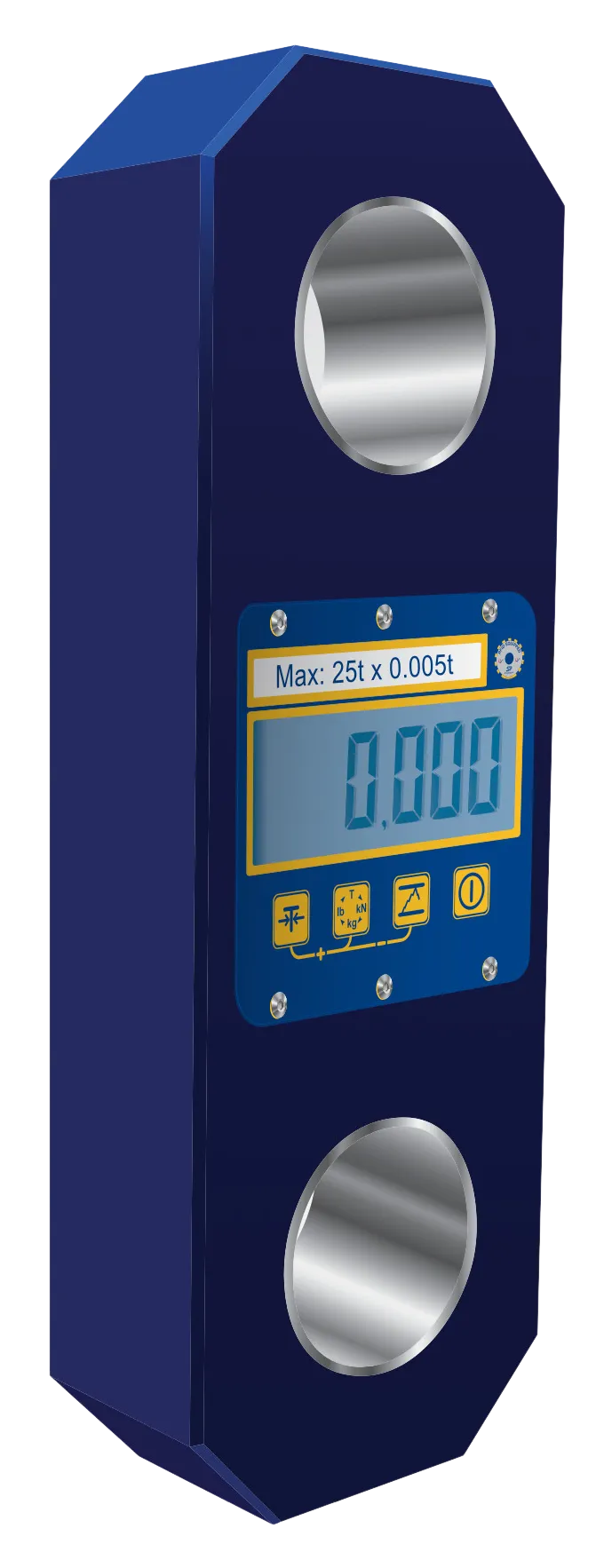

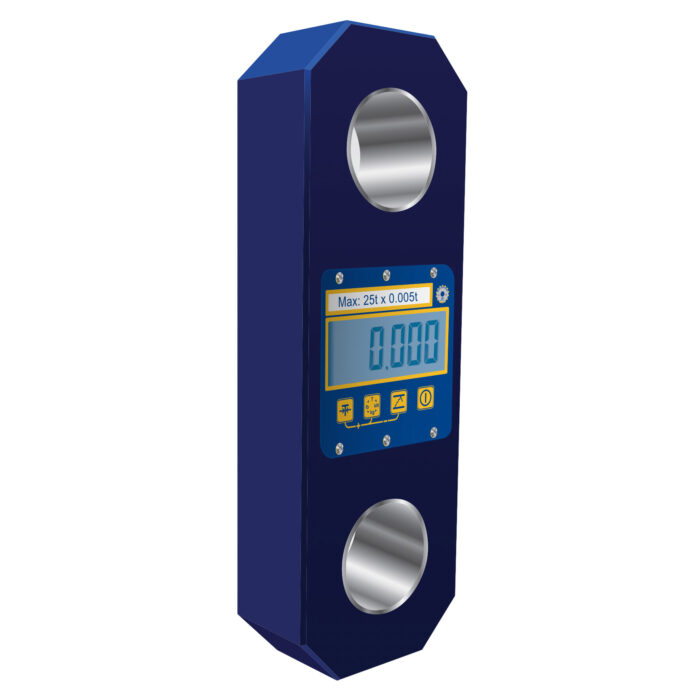

Crosby Straightpoint Bluetooth Loadlink Plus Dynamometer

The Bluetooth Loadlink Plus has been an industry-leading force measurement device since 1979, and is now used for load monitoring and heavy lifts ranging from 1-300 tonnes by a variety of industries, including manufacturing, transportation, aerospace, utilities, and more. The Bluetooth Loadlink Plus features a large 25mm/1” LCD display and an accuracy of ±0.1%

SPECIFICATIONS

Mechanical or Digital
Digital

Capacity
2,200 lb to 1,100,000 lb

Unit of Measure
lbs. ton, kg & kN

Resolution
Refer to spec sheet

Memory Storage
Via HHP App

Data Export
Via HHP App

Operating Range
14F to 122 F (-10 C to + 50 C)

Recalibration
Every 12 months

Proof Load
150%

Modes
Live & Peak modes with audiable alarm

Capture Rate
3 Hz – up to 200 Hz can be ordered for dynamic load monitoring applications

Accuracy
0.1% of instrument Capacity

Display
Via HPP App

Environmental
Suitable for continuous outdoor use

Approvals
CE / Complies with ASME B30.26

Advantages of the Crosby Straightpoint Bluetooth Loadlink Plus

Advanced features and functionality

The latest version of the digital dynamometer has advanced features perfect for today’s complicated load testing applications. The Bluetooth Loadlink Plus features full-function button controls for tare, 4 unit choices (lbs, kg, kN, and tonnes), peak hold, preset tare, audible set-point alarm, and an overload counter.

Complex microprocessor

The Bluetooth Loadlink Plus features advanced microprocessor-based electronics that enable high speed read rates, extreme resistance to industrial noise, and unprecedented stability. The Bluetooth Loadlink Plus has over 5,000 divisions and the highest standard resolution of any digital dynamometer on the market.

Unmatched strength to weight ratio

The Bluetooth Loadlink Plus is built from high-grade, aircraft-quality aluminum and boasts an advanced internal design structure that gives it an unparalleled strength to weight ratio. Bluetooth Loadlink Plus dynamometers are an average of 30% lighter than competitors, while upholding the same excellent safety standards.
