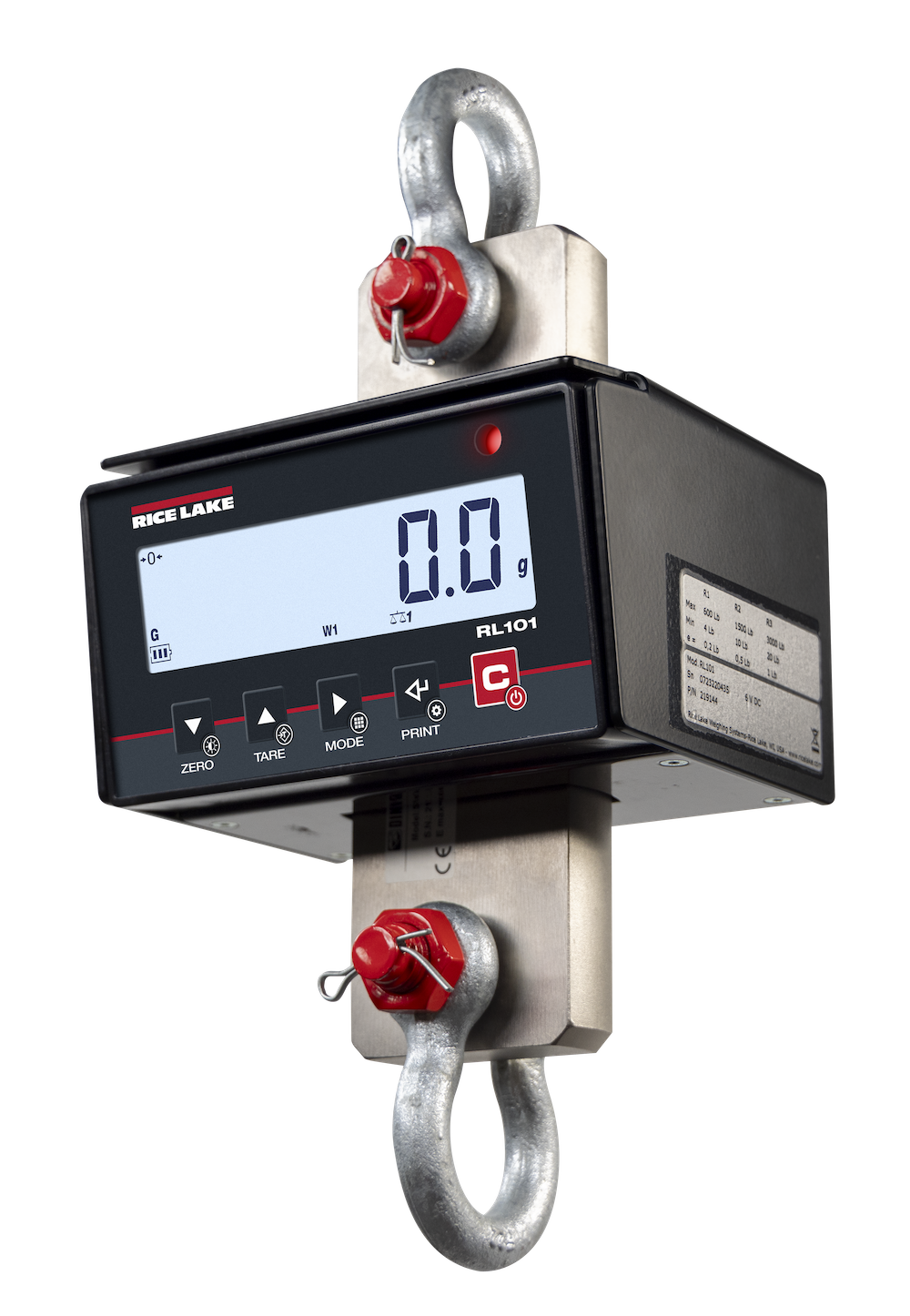

Rice Lake RL101 Crane Scale

The easy-to-use RL101 below-the-hook (BTH) digital crane scale is ideal for overhead weighing in industrial environments. It can be used at a distance of up to 25 feet when combined with the infrared remote control, and includes a vibrant, LCD backlit display to make it easy for operators to view weight in any lighting condition. The Rice Lake RL101 crane scale also includes a five-key waterproof keypad and a sturdy transport case. This compact, durable, and reliable crane scale is manufactured in strict compliance with the highest safety standards, and sustains a 5:1 Ultimate Safety Factor.

SPECIFICATIONS

Mechanical or Digital
Digital

Capacity
600 lb to 12,000 lb

Unit of Measure
lbf or kgf

Resolution
3,000d standard

Memory Storage
N/A

Data Export
N/A

Operating Range
14° F to 104° F (-10° C to 40° C)

Recalibration
Every 12 months

Proof Load
150%

Modes
Zero, Tare, Print, Auto-Off

Capture Rate
N/A

Accuracy
± 0.03% of instrument capacity

Display
1″ backlight, LCD

Environmental
IP54

Approvals
N/A

Resources

Are Certificates of Calibration included?2024-03-22T20:20:46-05:00

Yes, traceable to NIST (National Institute of Standards and Technology).

What is the accuracy?2024-03-22T20:21:04-05:00

0.03% of capacity.

Is there an option for a wireless remote display?2024-03-22T20:21:23-05:00

No; however, the RL101 crane scale comes with an infrared remote control that can be operated at a distance of up to 25 feet.

What is the power supply?2024-03-22T20:21:40-05:00

4 “AA” batteries are included.

What is the operating time?2024-03-22T20:21:58-05:00

40 hours with standard configuration.

How often should the RL101 Crane Scale be calibrated?2024-03-22T20:22:19-05:00

We recommend calibration every 12 months.

Where do I send my RL101 Crane Scale for calibration2024-03-22T20:22:53-05:00

Dillon/Quality Plus, Inc.
214 E. Kansas St.
Liberty, MO 64068

Do I need an RMA for sending the unit in for calibration or repair?2024-03-22T20:23:11-05:00

Yes. Please go to https://dqplus.com/rma-form/ to complete and submit an RMA form.
