ED Junior Dynamometer EDjr-1T
Description
| Product Name | ED Junior Dynamometer |
| Model # | EDjr-1T |
| Mechanical or Digital | Digital |
| Unit of Measure | lbf, kgf & Newtons |
| Capacity – lbf | 2500 lbs |
| Capacity – kgf | 1,000 |
| Capacity – Newtons | 10,000 |
| Wireless remote display capability | N |
| Display | 128 x 64 dot-graphic LCD 1" |
| Accuracy | ± 0.2% of instrument capacity |
| Shackles Included | Y |
| Resolution | 1/1000 resolution |
| Data Export | N/A |
| Memory | N/A |
| Modes | Live & Peak display modes |
| Capture Rate | 10Hz |
| Proof Load | 200% of capacity |
| Safe Overload | 200% of capacity |
| Operating Temperature | -4° F to 158° F (-20° C to 70° C) |
| Environmental | Suitable for continuous outdoor use |
| Battery | 2 x C batteries with 425 hours life |
| Suggested Recalibration | Every 12 months |
| Approvals | CE |
| Protection | Hard polymer storage case included along with calibration certificate |
Related products

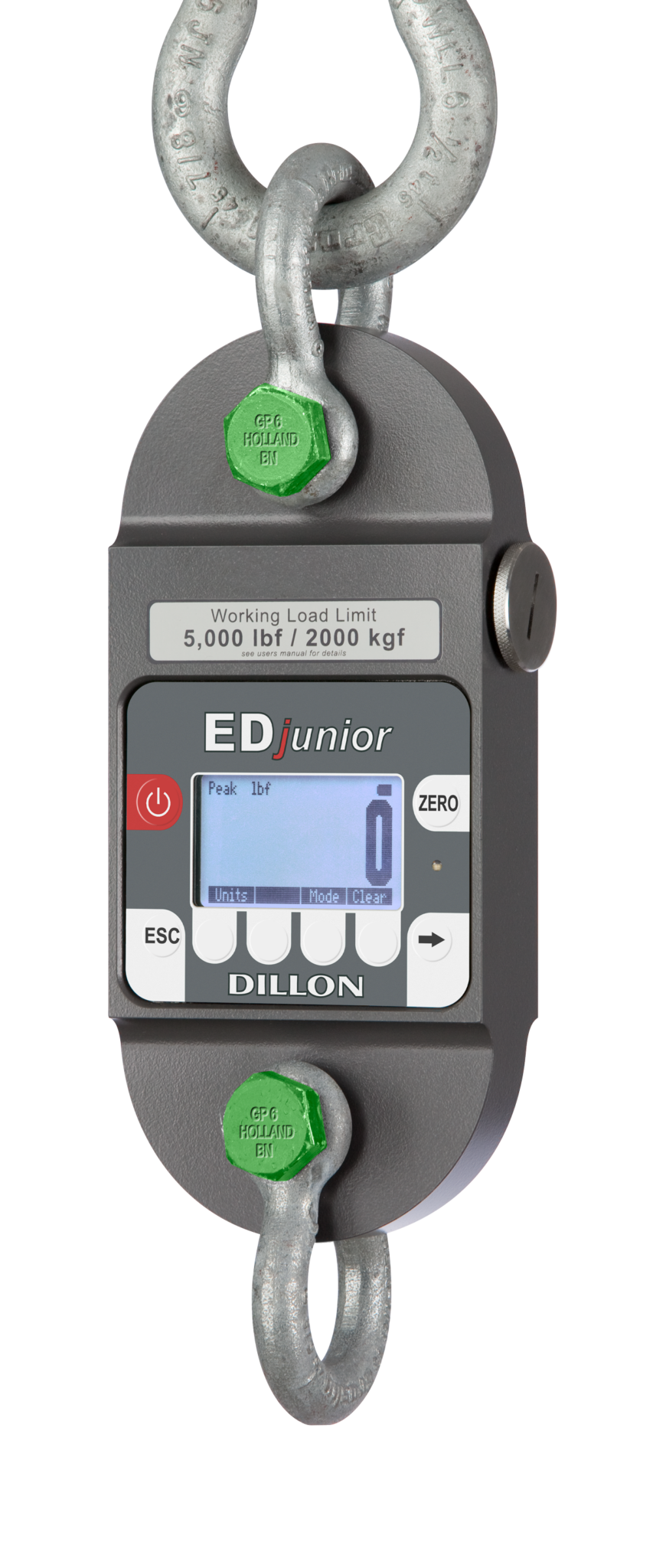

Dillon EDjunior Dynamometer (Dillon Load Cell)
Built for simplicity and ease of use, the EDjunior dynamometer features a Spartan design that is nevertheless extremely reliable for critical measurements of weight and force. A digital dynamometer with industry-leading accuracy and durability, the EDjunior (also called a Dillon load cell) is an economical way to ensure precise tension measurements and worksite safety.
SPECIFICATIONS
Mechanical or Digital
Digital
Capacity
2,500 lb to 25,000 lb
Unit of Measure
lbf, kgf & Newtons
Resolution
1/1000 resolution
Memory Storage
N/A
Data Export
N/A
Operating Range
-4° F to 158° F (-20° C to 70° C)
Recalibration
Every 12 months
Proof Load
150%
Modes
Live & Peak display modes
Capture Rate
10Hz
Accuracy
± 0.2% of instrument capacity
Display
Dot-graphic LCD display supports full text and 1” high digits
Environmental
Suitable for continuous outdoor use
Approvals
CE
Resources
The AP is a simple mechanical dynamometer with a dial face. The EDjunior is a basic digital dynamometer. The EDXtreme is a digital dynamometer with extra features such as data logging, custom units and optional remote viewing. There are some specification differences as well.
No, Only the Radio Ready version of the EDxtreme offers the wireless remote communicator.
Yes, all our dynamometers come with a certificate of calibration traceable to NIST.
It is recommended the dynamometers are calibrated annually.
You can send the dynamometers to the following address:
Dillon/Quality Plus, Inc.
Attn: Bill Dillon
214 E. Kansas St. Ste 101
Liberty, MO. 64068
We ask that you complete and include the RMA Form located under the “Calibration and Repair” portion of our website with the shipment.
On new units we offer a 24-month limited warranty on parts and workmanship. On repairs, our warranty is 30 days.
It depends on the unit you have. Some units require certain shackles to guarantee accuracy. Send us some info and we’ll let you know what will work with your unit, or give us a call if you need an immediate answer.
A typical crane scale is designed to measure hanging loads. A dynamometer can measure tension vertically, horizontally or anywhere in between. Add a hook to a dynamometer and you have a crane scale with versatility.
Yes, please refer to the specification sheet of each model regarding safe proof load.
Please refer to the specification sheet of each model.
Yes, only the EDxtreme offers data logging.
Dillon dynamometers are also sometimes called Dillon load cells.
Advantages of the EDjunior Dynamometer
